Bolt-On rubber pads are easy to install and can be performed in a simple 5 step process.
Step 1.
If the Bolt-on Rubber Pads are being installed onto new machines skip to Step 2. If being fitted to used machines, ensure all mud and other debris have been removed from the surface of the grouser blades before fitting the new pads.
Step 2.

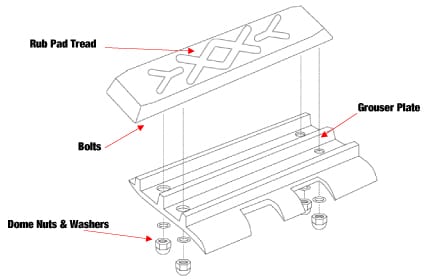

Position the Pad bolts (on the underside of the pad) in-line with the pre-drilled holes on the grouser plate.
Step 3.
Place the rubber pad firmly onto the grouser plate and fasten with spring washers and dome nuts from the underside of the grouser plate.
Step 4.
Use an impact wrench to fasten the bolts and nuts. Tighten further with an offset wrench.
Step 5.
Once all the bolt-on rubber pads have been installed, move the machine forward slowly to check they have been fitted securely and adjust if necessary.
For more information on Dekk rubber pads call us on 1300 355 528 or email [email protected]
